NEW Condor SIGMA

Condor Multi-Function Bond Tester

Condor 150-3HF

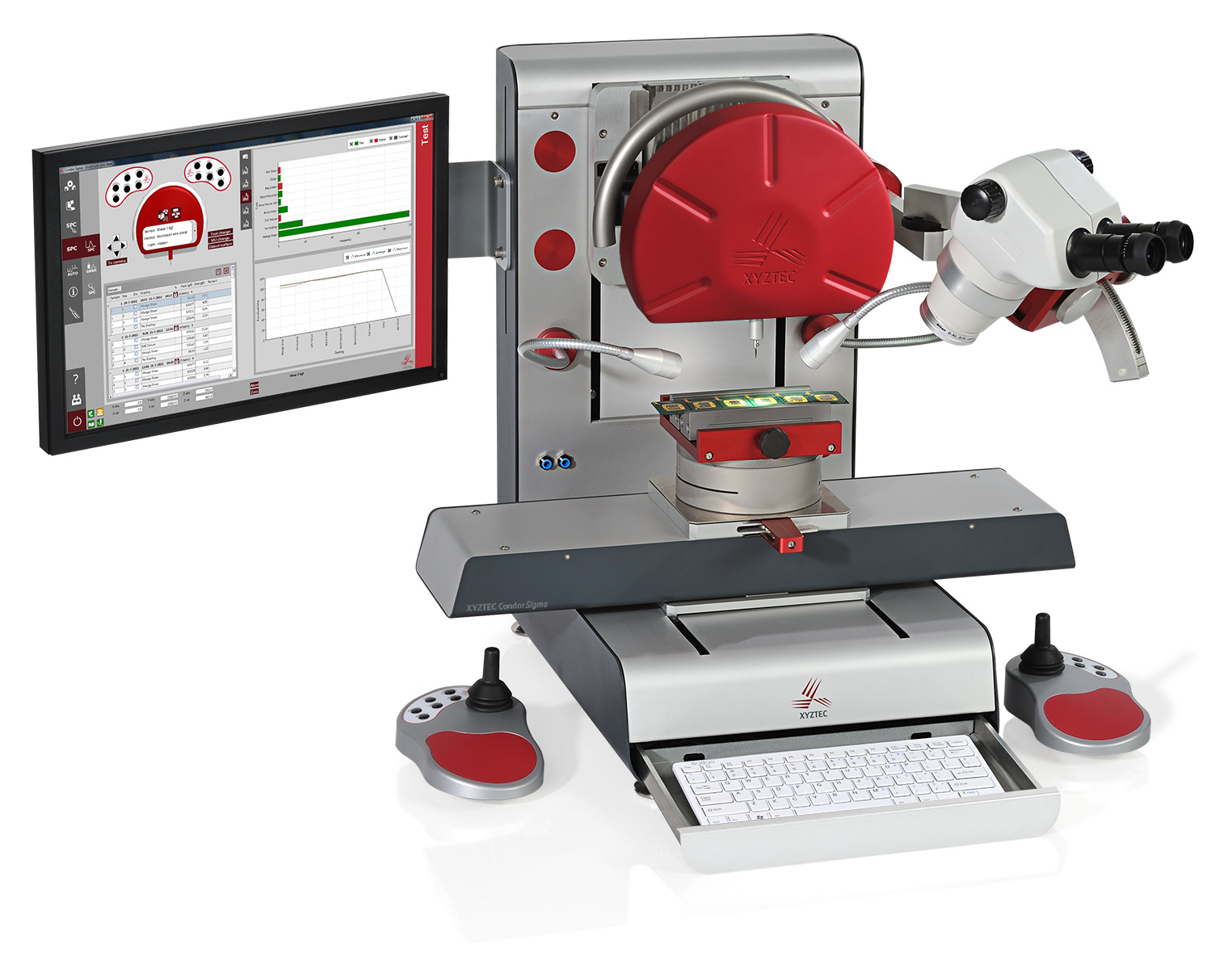

  The Condor Sigma is the most advanced bond tester on the market, combining the unique strengths of the Condor series with the latest technologies and innovations.

Whether you need a dedicated or multipurpose bond tester, the Condor Sigma is the best choice featuring unparalleled 0.075% accuracy, the best ergonomics, highest throughput, maximum flexibility and the lowest cost of ownership.


  • Pull, Shear test unit designed for your application.
  • Automatic selection of the Pull tools, Shear tools and measurement sensors by using a revolving measurement unit (RMU)
  • Computer selects tools and measurement sensors automatically.
  • Measuring of X,Y and Z travel for pull, push or shear distance.
  • Advanced software features for operator, Scientist, Statistical Process Control and calibration.

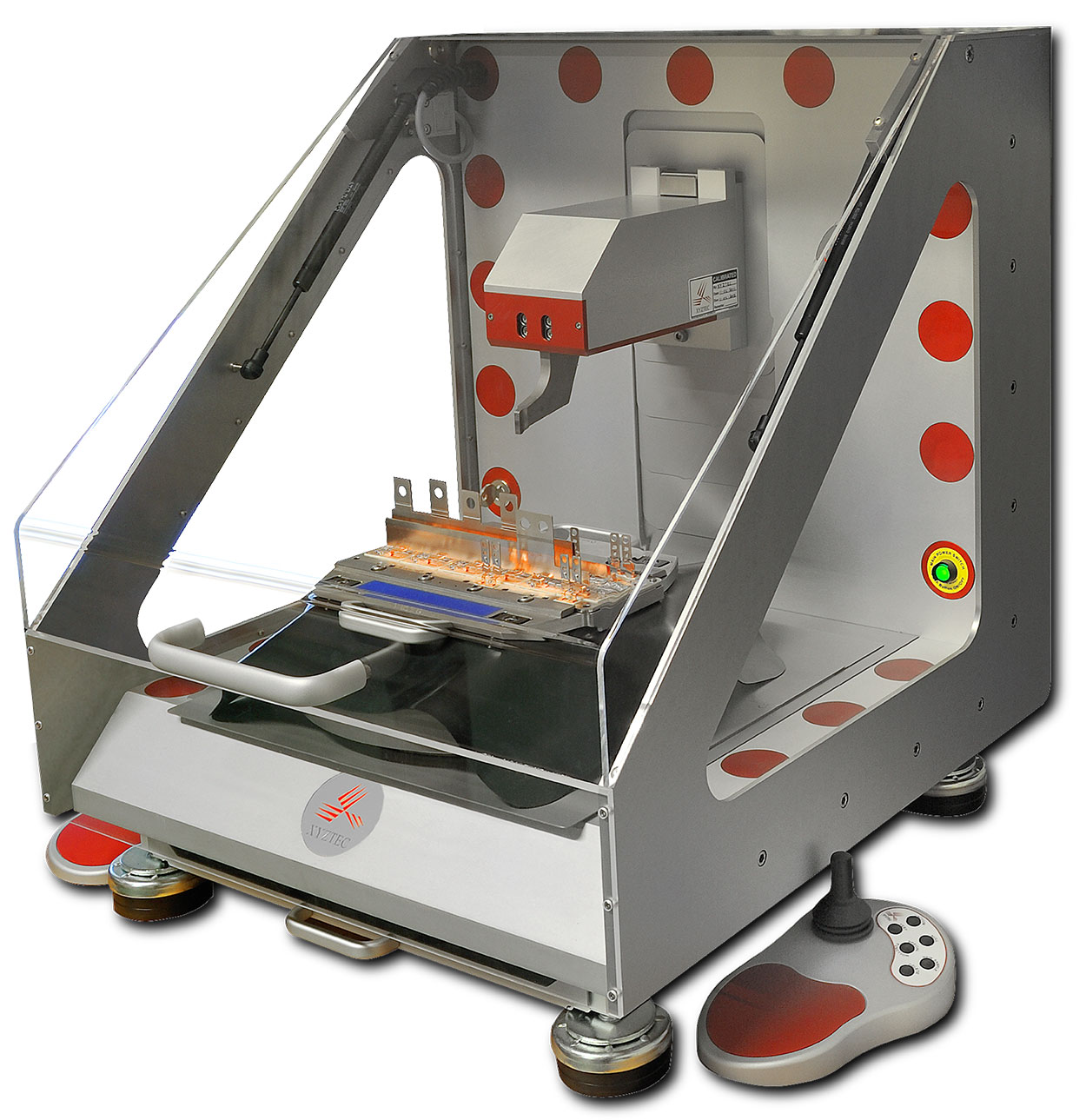

  • XYZTEC has developed a new test system called the CONDOR 150-3HF which is capable of measuring forces up to 400 Kgf.

  • Based upon the original CONDOR 150-3, the new CONDOR 150-3HF utilises a special Y-stage able to support the higher (400 Kgf) shear forces and an optional Z-stage for push/pull forces up to 400 Kgf.

  • This makes the new Condor 150-3HF highly qualified for testing power modules.
