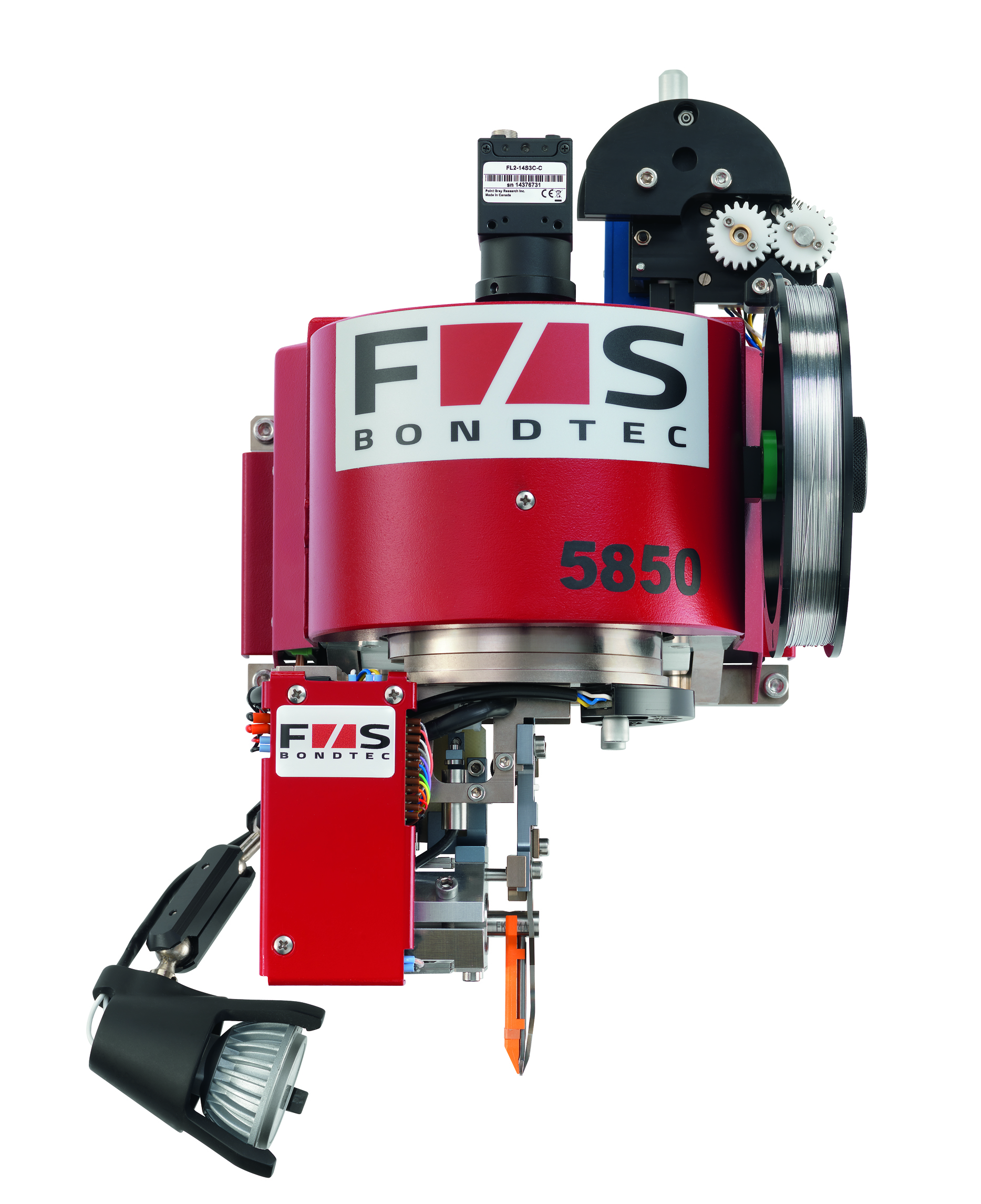

          5850 Heavy Wire Wedge Bonder



      5850 Heavy Wire Wedge Bonder
  • The heavy wire wedge version of the automatic wire bonders in our 58xx Series featuring exchange able bond heads.

  • A fully automatic mode makes it ideally suited for medium-scale production.

  • Parts to be bonded are fed manually by the operator, but the bonds are produced completely without operator influence. Thanks to the built-in pattern recognition (optional).

  • Single bonds can be made within seconds, making the machine perfect for R&D, Pilot manufacturing and mid volume production.







  Bondtec 5850 Datasheet



58xx Video

5850 Heavy Wire Wedge Bonder Specifications

Wire types



Aluminium wire 100μm  - 500μm on 4” spool

Aluminium ribbon up to 2000µm x 300µm

Copper wire 100μm  - 500μm on 4” spool

Motorised wire spool (optional)

Bondhead Wedge-Wedge for heavy wire

Front cut and back cut

Standard wedges, 2" length, 90mm optional. 90° wire feed with patented self-adjusting clip-on wire guide and quick change cutter blade.

Programmable voice-coil bond force system, 100cN - 1000cN

Ultrasonic system

F&K Generator 60 kHz . 40/90/120kHz optional

Axes

Working area X/Y-axis 200 x 150 mm; step resolution 0,3 μm

Programmable Z axis with 100 mm stroke; step resolution 0,3 μm

Hardware

Dual-Core PC with Windows 7 OS

Ethernet, USB 2.0/3.0

LCD Colour Display 22”

GigE-CCD-Colour Camera, 5 Mpixel

Fully networkable in TCP/IP servers for program archiving

Software

From single bonds up to complex programmes

Step & Repeat

Loop shapes can be stored in libraries

Optionally: pattern recognition with pseudo-error check

Dimensions

W x D x H 92 x 71 x 65 cm, weight approx. 80 kg

Connections

100 - 240 VAC, single phase, 50/60 Hz, max. 230 VA
6mm Ø standard vacuum tubing
